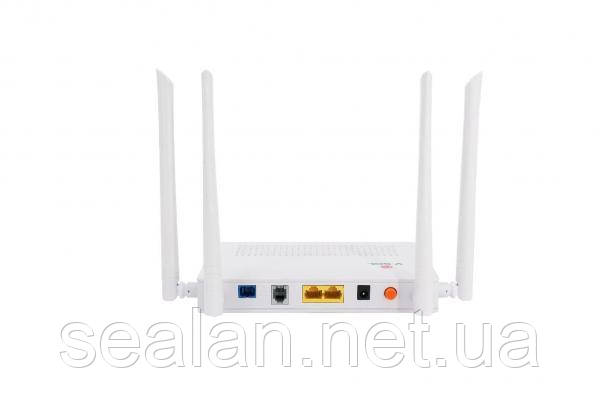

Абонентський термінал ONU XPON 2GE+1POTS+WIFI(MESH dual 2.4G+5G) V-SOL HG323DAC
- Готово до відправки
- Оптом і в роздріб
- Код: HG323DAC
1 463 ₴
Показати оптові ціниповернення товару протягом 14 днів за домовленістю
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
Абонентский терминал ONT XPON 2GE+1POTS+WIFI(MESH dual 2.4G+5G) V-SOL HG323DAC - абонентское устройство в пассивных оптических сетях как стандарта EPON так и GPON. Соответствует стандартам IEEE802.3ah, ITU-T G.984.x и техническим требованиям к оборудованию GPON (версия V2.0 и выше). Устройство работает на чипсете Realtek и оснащено двумя гигабитными портами RJ-45, оптическим EPON/GPON портом (SC/UPC), двухдиапазонным WiFi модулем (2.4/5.0 ГГц) технологии IEEE802.11b / g / n / ac, Layer 2/3, а также высококачественным VoIP. Является высоконадежным и простым в обслуживании, с гарантированным QoS. Поддержка полного управления функциями HGU с помощью VSOL OLT. Терминал полностью совместим с головными устройствами (OLT) на чипсетах Broadcom, PMC, Cortina.
Особенности:
- Support full management of HGU functions by VSOL OLT
- Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade , etc
- Integrated OAM/OMCI remote configuration andmaintenance function
- Support rich QinQ VLAN functions and IGMP Snooping multicast features
- Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
- Support 802.11n/ac WiFi(4T4R) function
- Support NAT, Firewall function
- Support IPv4 and IPv6 dual stack
- Support SIP protocol
- Integrated line testing compliant with GR-909 on POTS
Технические характеристики:
PON Interface 1 G/EPON port(EPON PX20+ and GPON Class B+)
Receiving sensitivity: =< -28dBm
Transmitting optical power: 0 до +4dBm
Transmission distance: 20KM
Wavelength Tx1310nm,Rx 1490nm
Optical Interface SC/UPC connector
LAN Interface 2 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector
POTS Interface 1 x RJ11 connectors
Support: G.711A/G.711U/G.723/G.729 codec
Support: T.30/T.38/G.711 Fax mode, DTMF Relay
WiFi Interface Compliant with IEEE802.11b/g/n/ac
- 2.4GHz Operating frequency: 2.400-2.483GHz
- 5.0GHz Operating frequency: 5.150-5.825GHz
- Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps
- Support: multiple SSID
- TX power: 11n--22dBm/11ac--24dBm
LED 9 шт. , For Status of POWER, LOS, PON, WAN, LAN1, LAN2, 2.4G, 5G, PHONE
Operating Condition Temperature: 0 до +50
Humidity: 10% до 90% non-condensing
Power Supply DC 12V/1A
Power Supply =< 10W
Dimension 178mm x 120mm x 30mm
Weight 0.32Kg
Программные функции:
Management Mode
• OAM/OMCI, Telnet, WEB, TR069
• Support full management of HGU functions by VSOL OLT
Data Service Functions
• Full speed non-blocking switching
• 2K MAC address table
• 64 full range VLAN ID
• Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc
• Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
• Support auto polarity detection of Ethernet ports (AUTO MDIX)
• Integrated IEEE802.1p QoS with four level priority queues
• Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
• Support bridge, router and bridge/router mixed mode
WiFi Service Functions
• Integrated 802.11b/g/n/ac
• Support max 128 users
• Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)
• Modulation type: DSSS, CCK and OFDM
• Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
POTS Service Function
• Call protocol: SIP(IMS compatible) seamless compatible with all popular call agent
• Integrate heartbeat function and support active/standby call agent
• Voice coding: ITU-T G.711/G.722/G.729, auto-negotiate with call agent
• Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length
• Support high/low speed fax, bypass fax, and T38 fax
• Support high speed MODEM(56Kbps) dial access
• Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service
• Multi-party conferencing
• IP address assignment: dynamic PPPoE/DHCP Client and static IP
• Support WEB, CLI, IVR, TR069
• Call loss less than 0.01%
Інформація для замовлення
- Ціна: 1 463 ₴
